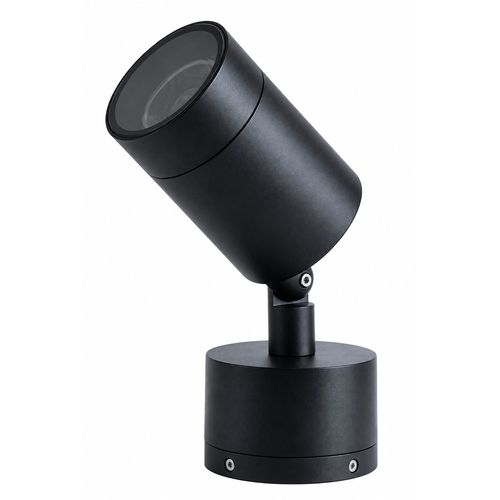

Compact landscape light.
Die cast aluminum body.
Ultra white tempered glass.
Silicone gasket.
High efficiency PMMA lens.
Anti-corrosion electrostatic powder coating.
Stainless steel external screws and mounting plate.
Vertically ± 90° adjust and horizontally 360° rotate.
Special surface treatment is required for coastal environments.
Structurally waterproof, detachable for easy maintenance of LED, lens, shroud and driver.
72-7014 / 7075 / 7076 / 7077
COLOR
black RAL9011 - grey RAL7012 - white RAL9016
DESCRIPTION
0-10V - Triac - DALI / IK08

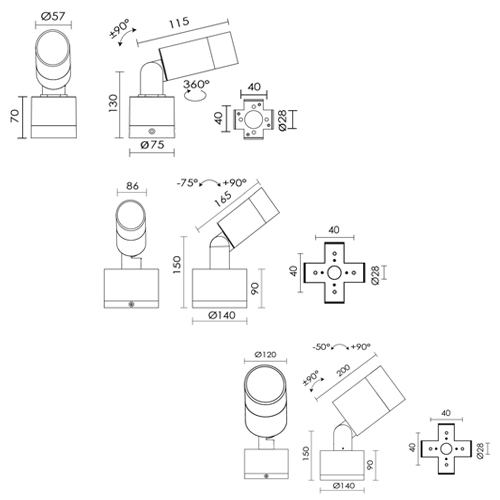

DIMENSIONS
D: Ø57mm H: 115mm (11W_ 72-7014)
D: Ø86mm H: 165mm (20W_ 72-7075)
D: Ø120mm H: 200mm (28W_ 72-7076 & 42W_ 72-7077)
D: Ø86mm H: 165mm (20W_ 72-7075)
D: Ø120mm H: 200mm (28W_ 72-7076 & 42W_ 72-7077)
SOURCE TYPE
11W - 20W - 28W - 42W
15° - 24° - 36° - 50° - 20°x50°
2700K - 3000K - 4000K - 5000K - RGBW
11W: 525lm - 911lm (3000K)
20W: 1415lm - 1874lm (3000K)
28W: 1969lm - 2577lm (3000K)
42W: 2695lm - 3629lm (3000K)
220-240V (2700K - 3000K - 4000K - 5000K)
24V (RGBW)
CRI > 80
SDCM < 3
15° - 24° - 36° - 50° - 20°x50°
2700K - 3000K - 4000K - 5000K - RGBW
11W: 525lm - 911lm (3000K)
20W: 1415lm - 1874lm (3000K)
28W: 1969lm - 2577lm (3000K)
42W: 2695lm - 3629lm (3000K)
220-240V (2700K - 3000K - 4000K - 5000K)
24V (RGBW)
CRI > 80
SDCM < 3
MATERIAL
die casting aluminum body
IP RATING
IP65
ACCESSORIES
telescopic mounting rod
plastic spike
aluminum spike
tree strap
open straight hood
angled retractable hood
honeycomb louver
high pole mounting
plastic spike
aluminum spike
tree strap
open straight hood
angled retractable hood
honeycomb louver
high pole mounting
