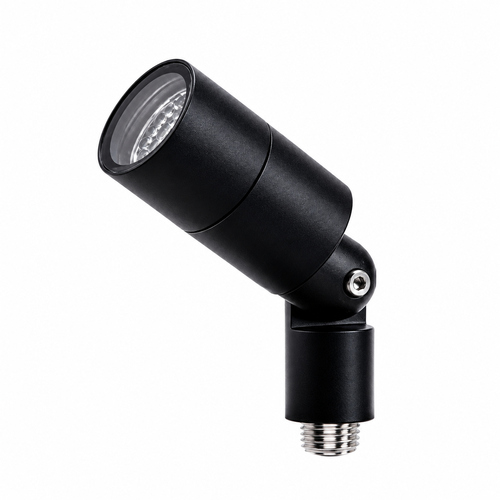

Compact landscape light.
Die cast aluminum body.
Ultra white tempered glass.
Silicone gasket.
High efficiency PMMA lens.
Anti-corrosion electrostatic powder coating.
Stainless steel external screws and mounting plate.
Vertically ± 90° adjust and horizontally 360° rotate.
Special surface treatment is required for coastal environments.
Structurally waterproof, detachable for easy maintenance of LED, lens, hood and driver.
72-7048 / 7050 / 7051 / 7052
COLOR
black RAL9011 - grey RAL7012 - white RAL9016
DESCRIPTION
0-10V - Triac - DALI / IK08

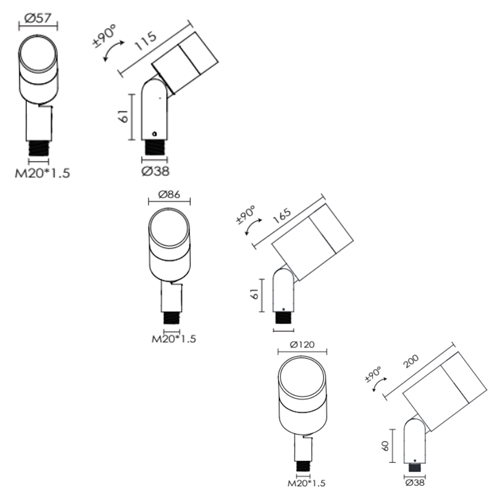

DIMENSIONS
D: Ø57mm H: 115mm (11W_ 72-7048)
D: Ø86mm H: 165mm (20W_ 72-7050)
D: Ø120mm H: 200mm (28W_ 72-7051 & 42W_ 72-7052)
D: Ø86mm H: 165mm (20W_ 72-7050)
D: Ø120mm H: 200mm (28W_ 72-7051 & 42W_ 72-7052)
SOURCE TYPE
11W - 20W - 28W - 42W
15° - 24° - 36° - 50° - 20°x50°
2700K - 3000K - 4000K - 5000K - RGBW
11W: 525lm - 911lm (3000K)
20W: 1415lm - 1874lm (3000K)
28W: 1969lm - 2577lm (3000K)
42W: 2695lm - 3629lm (3000K)
220-240V (2700K - 3000K - 4000K - 5000K)
24V (only 72-7048 & all spots with RGBW)
CRI > 80
SDCM < 3
15° - 24° - 36° - 50° - 20°x50°
2700K - 3000K - 4000K - 5000K - RGBW
11W: 525lm - 911lm (3000K)
20W: 1415lm - 1874lm (3000K)
28W: 1969lm - 2577lm (3000K)
42W: 2695lm - 3629lm (3000K)
220-240V (2700K - 3000K - 4000K - 5000K)
24V (only 72-7048 & all spots with RGBW)
CRI > 80
SDCM < 3
MATERIAL
die casting aluminum body
IP RATING
IP65
ACCESSORIES
telescopic mounting rod
plastic spike
aluminum spike
tree strap
open straight hood
angled retractable hood
honeycomb louver
high pole mounting
aluminum base
plastic spike
aluminum spike
tree strap
open straight hood
angled retractable hood
honeycomb louver
high pole mounting
aluminum base
