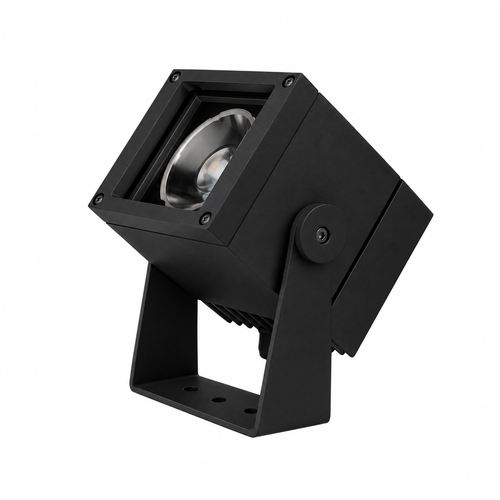

Die cast aluminum body and faceplate.
Ultra white tempered glass.
Silicone gasket.
High efficiency PMMA lens.
Anti-corrosion electrostatic powder coating.
External screws are all made of stainless steel materials.
The projecting angle can be 90°adjusted .
Marine grade treatment is available for seaside environments.
Structure waterproof, all components can be disassembled and replaced.
Moisture-prevention designed inside.
72-7754
COLOR
black RAL9011 - grey RAL7012 - white RAL9016
DESCRIPTION
2700K - 3000K - 4000K / IK08 / 0-10V / DALI

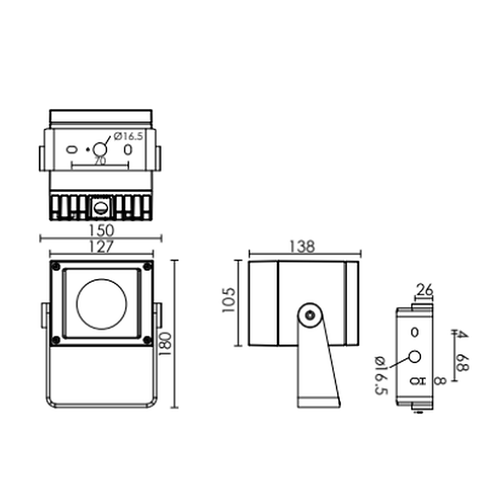

DIMENSIONS
Η: 180mm L: 138mm W: 127mm
SOURCE TYPE
COB LED 15W 3000K SDCM<3 CRI>80 220-240V
15° 918lm - 24° 1056lm - 36° 1075lm - 50° 993lm - 20°x50° 1030lm
15° 918lm - 24° 1056lm - 36° 1075lm - 50° 993lm - 20°x50° 1030lm
MATERIAL
die cast aluminum
IP RATING
IP65
ACCESSORIES
anti glare visor
